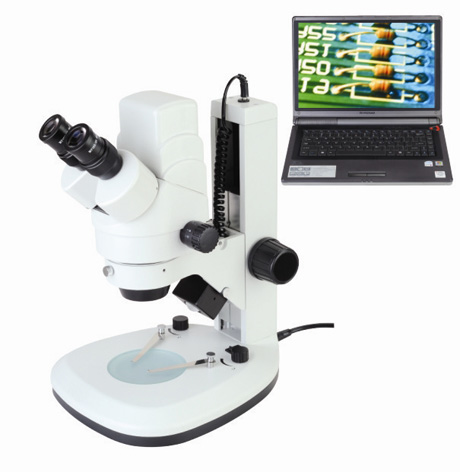

    DM7045-B2 Digital Zoom Stereo Microscope



It has reliable performance, innovative appearance and convenient operation. With incomparable optical performance, high resolution, large field of view, long working distance, this product is extensively applied to such domains as educational demonstration, biological anatomy, electronic industry and police observation and analysis etc.

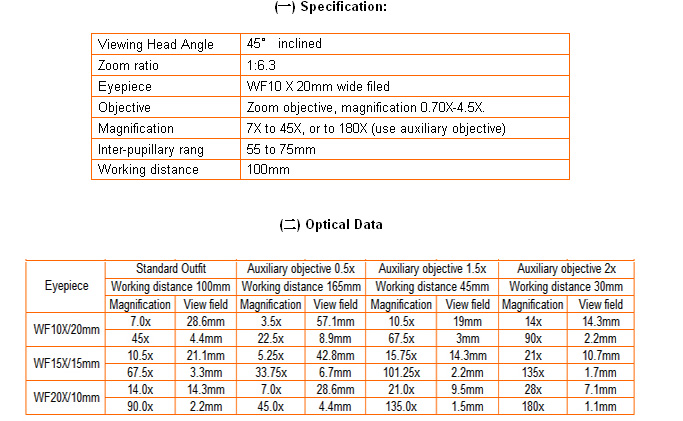

Technical Specification



Item

DM7045-B2
Vision facilities 1.3M pixel (1/2" CMOS) 3.0 pixel (1/2" CMOS)
Resolution 1280x1024 Effective pixels 2048x1536 Effective pixels
Pixel size 5.2umX5.2um 3.18umX3.18um
Transmission rate 16f/s@1280X1024 7.5f/s@2048X1536
Sensitivity 1.8v/lux-sec @550nm 0.9v/lus-secx
Scanning mode Successive scans Successive scans
Operating system Windows 2000/XP Windows 2000/XP
Data interface USB2.30 (480Mbit/sec) USB2.30 (480Mbit/sec)
Power USB2.0 (Power supply) USB2.0 (Power supply)
Working temperature 0<C - 50<C 0<C - 50<C
