Digital Stereo Microscope 　 Digital stereo microscope can provide high resolution and sharp image. With built-in CMOS software, it's very easy for demonstration and analysis. The instruments are widely used in educational field and electronic industry.

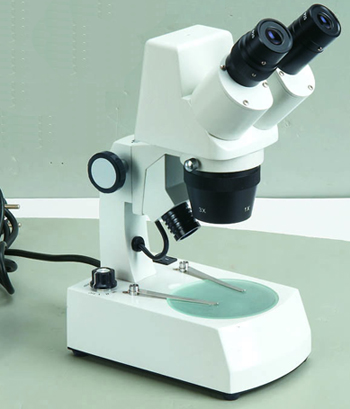

Digital Stereo Microscope ST-D-Digital

Specification and Option: 　 　 Parts Specification ST-D-Digital Viewing Head Inclined Binocular Head yes Head 360° Rotatable yes Built-in CMOS (1.3M Pixel) yes Eyepiece WF5X/Ø16 WF10X/Ø20 WF15X/Ø15 WF20X/Ø10 SWF10X/Ø23 yes HWF10X/Ø22 Objective 2X/4X 1X/2X 1X/3X Zoom magnification 1X-4X yes Focusing Coarse Focus Adjustment System yes Coaxial Coarse & Fine Focus Adjustment System Incident light Halogen lamp 12V/10W yes LED lamp (3.2V20mA) X3 LED lamp 3.2V1W Transmitted light Halogen lamp 12V/10W yes LED lamp (3.2V60mA) Brightness adjustable system yes
