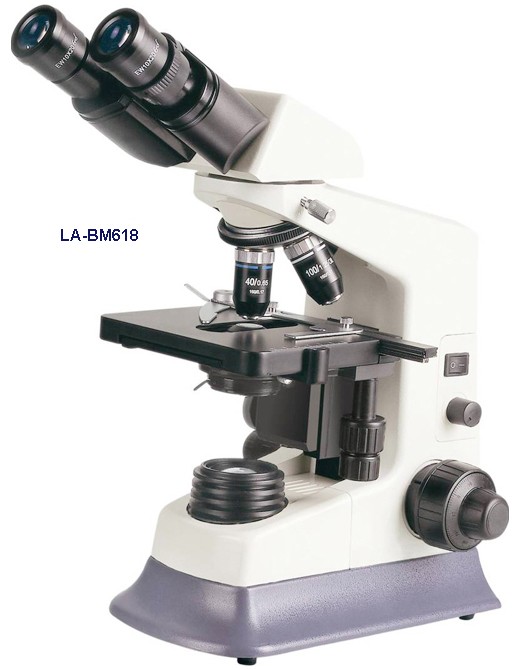

BM618 Series Biological Microscope

Nice shape, excellent optical system and flexible outfit make you enjoyable the work.

It is an ideal instrument for the biology, bacteriology, immunology and pharmacology.







  • Convenient and Comfortable Observing with High Point and Wide Field Eyepiece EW10X/20

  • Sharp and Bright Image with CF High-contrast Objectives

  • Very Easy and Safe to Replace Lamp and just Take away the Collector and do not need to Overturn the Base

  • Convenient Handling with Special Design
    Low Position Coarse and Fine Adjustment
    Suitable for Different Region Power Supply with 100V-240V Multi-input Rating



Specification

Parts Specification
Viewing Head Compensation Free Binocular Head , Inclined at 30<, 360< Rotatable.
Eyepiece High Point and Wide Field Eyepiece EW10X/20
Objective CF High-contrast Objective 4X、10X、40X、100X
Nosepiece Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140X140mm/75X50mm
Condenser NA1.25 Abbe Condenser with Iris Diaphragm and Filter, Rack & Pinion Adjustment
Illumination Halogen Lamp 6V/20W,Brightness Adjustable

Option

Parts Specification
Viewing Head Monocular Head, Inclined at 30<, 360<Rotatable
Compensation Free Trinocular Head, Inclined at 30<, 360<Rotatable.
Eyepiece Wide Field Eyepiece WF10X
Wide Field Eyepiece P16X
Wide Field Eyepiece WF10X W/Pointer
Wide Field Eyepiece WF10X W/0.1Micrometer
High Point Eyepiece WF10X/18.5
Wide Field Eyepiece WF20X
Objective Achromatic Objective4X、10X、20X、40X、60X、100X
Plan Achromatic Objective4X、10X、20X、40X、60X、100X
Infinite Achromatic Objective System4X、10X、40X、100X
Infinite Plan Achromatic Objective System4X、10X、20X、40X、100X
Nosepiece Backward Quintuple Nosepiece
Stage Double Layers Mechanical Stage 160X140mm/75X50mm
Condenser Dark Field Condenser(Dry)NA0.9
Dark Field Condenser(Oil)NA1.25-1.36
Collector Kohler Illumination
Aspherical Collector
Others Simple Polarization Set
Simple Phase Contrast Kit
Sliding Phase Contrast Kit
Turret Phase Contrast Kit
Epi-fluorescent Attachment
LED Optical Point System
Photography Attachment
1X & 0.5X Video Attachment
Drawing Attachment
