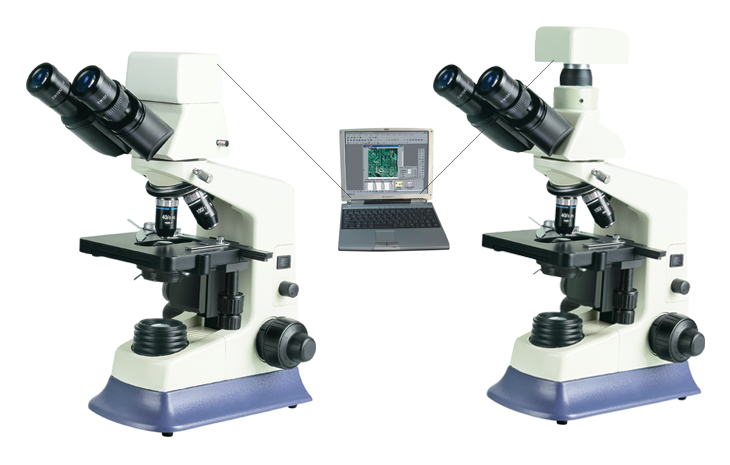

DM618-A Series Digital Microscope

With ingenious stand, sharp image, comfortable operation and high-resolution camera, making work enjoyable. It is suitably used in clinic and research fields.
　 　
　

　
　

Main Character:

  • High Sensitive, Real-time Image Display by 1.3M pixel CMOS Digital Camera Connecting to PC through USB2.0 or IEEE1394 Adapter

  • Sharper Image with CF High Contrast Objective

    Steady Image Show whatever Changing the Magnification of Objective or the Size of Iris Hole

  • Easy Lamp Replacement Device, just Take away the Collector

  • Professional and Strong Micro-image Process and Analysis Software

Specification

　

Parts Specification
Viewing Head Compensation Free Binocular Head , Inclined at 30＜, 360＜Rotatable.
Eyepiece High Point and Wide Field Eyepiece EW10X/20
Objective CF High-contrast Objective 4X、10X、40X、100X
Nosepiece Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140X140mm/75X50mm
Condenser NA1.25 Abbe Condenser with Iris Diaphragm and Filter, Rack & Pinion Adjustment
Illumination Halogen Lamp 6V/20W,Brightness Adjustable

　

Option

　

Parts Specification
Viewing Head Monocular Head, Inclined at 30＜, 360＜Rotatable
Compensation Free Trinocular Head, Inclined at 30＜, 360＜Rotatable.
Eyepiece Wide Field Eyepiece WF10X
Wide Field Eyepiece P16X
Wide Field Eyepiece WF10X W/Pointer
Wide Field Eyepiece WF10X W/0.1Micrometer
High Point Eyepiece WF10X/18.5
Wide Field Eyepiece WF20X
Objective Achromatic Objective4X、10X、20X、40X、60X、100X
Plan Achromatic Objective4X、10X、20X、40X、60X、100X
Infinite Achromatic Objective System4X、10X、40X、100X
Infinite Plan Achromatic Objective System4X、10X、20X、40X、100X
Nosepiece Backward Quintuple Nosepiece
Stage Double Layers Mechanical Stage 160X140mm/75X50mm
Condenser Dark Field Condenser(Dry)NA0.9
Dark Field Condenser(Oil)NA1.25-1.36
Collector Kohler Illumination
Aspherical Collector
Others Simple Polarization Set
Simple Phase Contrast Kit
Sliding Phase Contrast Kit
Turret Phase Contrast Kit
Epi-fluorescent Attachment
LED Optical Point System
Photography Attachment
1X & 0.5X Video Attachment
Drawing Attachment
　 　
