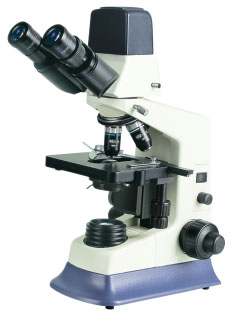

DM618-B
Series Digital Microscope
With
300,000-400,000 pixel and featuring economy, practicality and
facility,
the
microscope is widely used in academic, agricultural and sanitary
field.
|
| |
|
| |
|
|
| |
 |
 |
| |
|
|
| |
|
|
|
| |
Specification
|
Parts |
Specification |
DM618-B1 |
DM618-B2 |
|
Viewing Head |
Compensation Free Binocular Head, Inclined at 30＜, Interpupilary
Distance 55-75mm |
yes |
yes |
|
Camera System |
CMOS Chip, USB1.0 Output, 300,000 Pixel |
yes |
|
|

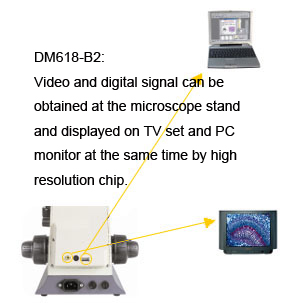

High resolution Chip, RCA, S-Vide, USB1.O Output, 400,000 pixel |
|
yes |
|
Eyepiece |
High Point and Wide Field Eyepiece EW10X/20 |
yes |
yes |
|
Objective |
CF High-contract Objective 4X、10X、40X、100X |
yes |
yes |
|
Nosepiece |
Backward Quadruple Nosepiece |
yes |
yes |
|
Stage |
Double layer mechanical Stage 140mmX140mm/75mmX50mm |
yes |
yes |
|
Focusing |
Coaxial Coarse & Fine Focus Adjustment System |
yes |
yes |
|
Condenser |
NA1.25 Abbe Condenser with Iris Diaphragm and Filter, Rack &
Pinion Adjustment |
yes |
yes |
|
Illumination |
Halogen Lamp 6V20W, Brightness Adjustable |
yes |
|
|
Halogen Lamp 12V20W, Brightness Adjustable |
|
yes |
|
Image Output |
USB |
yes |
|
|
USB、RCA、S-Video |
|
yes |
|
Software |
DN-2 Micro-image Process Software, Protector |
yes |
yes |
Option
|
Objective |
Plan Achromatic 4X、10X、20X、40X、60X、100X |
|
Infinitive
Achromatic Objective 4X、10X、40X、100X |
|
Infinitive Plan Objective 4X、10X、20X、40X、100X |
|
Nosepiece |
Backward Quintuple Nosepiece |
|
Condenser |
Dry Dark Field Condenser NA0.9 |
|
Oil Dark Field Condenser NA1.25-1.36 |
|
Collector |
Kohler Illumination |
|
|
