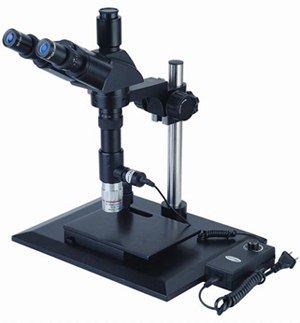

Industry Metallurgical Testing Microscope

Model: SZM45-IM1

SZM45-IM1 Industry Metallurgical Testing Microscope with coaxial illumination system, are characterized by unique image and optical system. All these factors make it with excellent contrast and depth of field, Make the possibility of the video display and Visual observation working simultaneously. It is good choice for observing and testing reflective objective.

Specification

Parts Specification SZM45-IM1 Viewing Head Trinocular head of articulated type 　 Binocular head of articulated type for option Zoom body 0.7X~4.5X zoom range 　 Eyepiece WF10X-18mm with eyepiece cover 　 Objective Plan Apo 2X/NA 0.055 for option Plan Apo 5X/NA 0.14 　 Plan Apo 10X/NA 0.28 for option CCD Eyepiece 0.5X 　 Illuminator Coaxial illumination 1W LED illuminator, adjustable brightness 　 CMOS Camera 130W / 300W / 500W / AM35 AV output for option 8"LCD display screen AV input/ VGA input, with cross, multi-language for option LCD display screen stand 360° adjustable for option Mobile stage Stage size: 135X175mm for option Stander Base size: (L)325 x (W)265 x (H)290 　 Mounting holes size for focus arm: Ø45/Ø49

Industry Metallurgical Testing Microscope optical data Plan Apo Item Eyepiece 2X Optical Magnification 14X~90X 10X Field of visual Ø2~Ø12.8 Working distance 34.6mm 5X Optical Magnification 35X~225X Field of visual Ø0.8~Ø5.1 Working distance 45mm 10X Optical Magnification 70X~450X Field of visual Ø0.4~Ø2.5 Working distance 34mm
